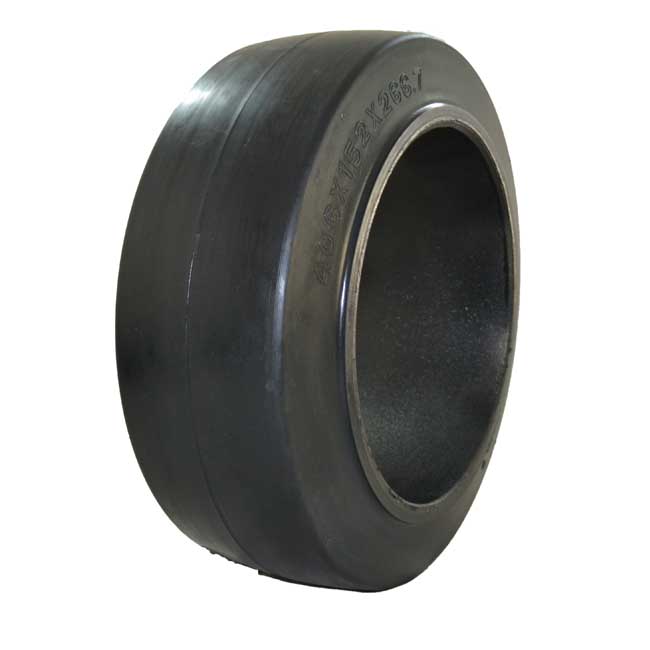

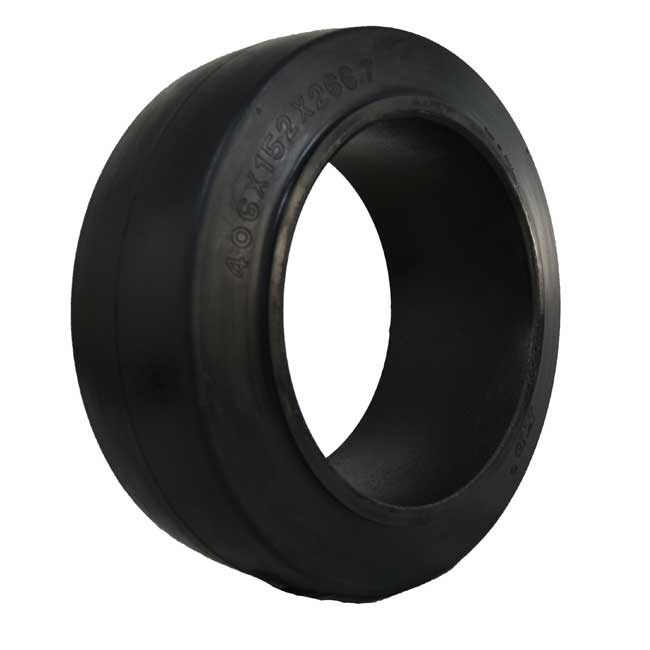

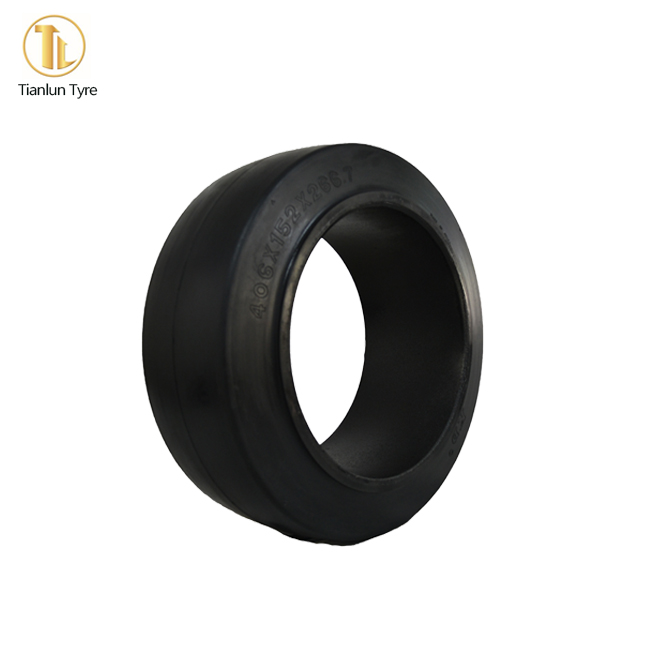

Press on solid tire
| Size | pattern Wo / W1 | Max Load Index（kg） | ||||
inch |
mm | |||||
| 10km/h | 16km/h | |||||
Drive | Steer | Drive | Steer | |||
| 9*5*5 | 228.6*127*127 | Wo | 890 | 790 | 850 | 785 |
| 10*4*6 1/2 | 254*101.6*165.1 | Wo | 720 | 640 | 690 | 635 |
| 10*5*6 1/2 | 254*127*165.1 | Wo | 940 | 840 | 900 | 830 |
| 10*6*6 1/2 | 254*152.4*165.1 | Wo | 1160 | 1030 | 1110 | 1030 |
| 10 1/2*5*5 | 266.7*127*127 | Wo | 1020 | 905 | 980 | 905 |
| 10 1/2*6*5 | 266.7*152.4*127 | Wo | 1295 | 1150 | 1240 | 1145 |
| 101/2*5*6 1/2 | 266.7*127*165.1 | Wo | 1000 | 890 | 950 | 880 |
| 101/2*6*6 1/2 | 266.7*152.4*165.1 | Wo | 1240 | 1100 | 1185 | 1090 |
| 12*4 1/2*8 | 304.8*114.3*203.2 | Wo | 950 | 840 | 900 | 830 |
| 12*5*8 | 304.8*127*203.2 | Wo | 1030 | 915 | 980 | 910 |
| 131/2*5 1/2*8 | 342.9*139.7*203.2 | Wo | 1400 | 1250 | 1340 | 1240 |
| 14*4 1/2*8 | 355.6*114.3*203.2 | Wo,W1 | 1090 | 970 | 1040 | 960 |
| 15*5*11 1/4 | 381*127*285.8 | Wo | 1290 | 1150 | 1230 | 1140 |
| 151/2*5*10 | 393.7*127*254 | Wo | 1360 | 1210 | 1300 | 1200 |
| 151/2*6*10 | 393.7*152.4*254 | Wo | 1730 | 1540 | 1655 | 1530 |
| 16*5*10 1/2 | 406.4*152.4*266.7 | Wo,W1 | 1400 | 1250 | 1340 | 1240 |
| 16*6*10 1/2 | 406.4*152.4*266.7 | Wo,W1 | 1780 | 1580 | 1700 | 1570 |
| 16*7*10 1/2 | 406.4*177.8*266.7 | Wo | 2150 | 1910 | 2050 | 1900 |
| 161/4*5*11 1/4 | 412.8*127*285.8 | Wo,W1 | 1415 | 1260 | 1350 | 1250 |
| 161/4*6*11 1/4 | 412.8*152.4*285.8 | Wo,W1 | 1780 | 1580 | 1700 | 1570 |
| 161/4*7*11 1/4 | 412.8*177.8*285.8 | Wo | 2150 | 1910 | 2050 | 1900 |
| 17*5*12 1/8 | 431.8*127*308 | Wo | 1460 | 1300 | 1400 | 1290 |
| 18*5*12 1/2 | 457.2*127*308 | Wo,W1 | 1530 | 1360 | 1460 | 1350 |
| 18*6*12 1/8 | 457.2*152.4*308 | Wo,W1 | 1950 | 1740 | 1860 | 1720 |
| 18*7*12 1/8 | 457.2*177.8*308 | Wo,W1 | 2370 | 2110 | 2270 | 2100 |
| 18*8*12 1/8 | 457.2*203.2*308 | Wo,W1 | 2790 | 2480 | 2670 | 2470 |
| 18*9*12 1/2 | 457.2*228.6*308 | Wo,W1 | 3210 | 2850 | 3070 | 2840 |
| 20*8*16 | 508*203.5*406.4 | Wo,W1 | 2795 | 2480 | 2670 | 2470 |
| 21*7*15 | 533.4*177.8*381 | Wo,W1 | 2670 | 2380 | 2550 | 2360 |
| 21*8*15 | 533.4*203.2*381 | Wo,W1 | 3140 | 2795 | 3000 | 2780 |
| 21*9*15 | 533.4*228.6*381 | Wo | 3620 | 3220 | 3460 | 3200 |
| 22*8*16 | 558.8*203.2*406.4 | Wo,W1 | 3260 | 2900 | 3110 | 2880 |
| 22*9*16 | 558.8*228.6*406.4 | Wo,W1 | 3450 | 3340 | 3590 | 3320 |
| 22*12*16 | 558.8*304.8*406.4 | Wo,W1 | 5235 | 4660 | 5000 | 4630 |
| 28*12*22 | 711.2*304.8*558.8 | Wo | 6120 | 5450 | 5900 | 5400 |
| 28*14*22 | 711.2*355.6*558.8 | Wo | 7200 | 6430 | 6950 | 6370 |
| 28*16*22 | 711.2*406.4*558.8 | Wo | 8250 | 7345 | 7930 | 7075 |
| 36*9*30 | 914.4*228.6*762 | Wo | 5365 | 4630 | 5005 | 4290 |
| 36*10*30 | 914.4*254*762 | Wo | 6570 | 5750 | 6170 | 5335 |
| 36*12*30 | 914.4*304.8*762 | Wo | 7760 | 6925 | 7245 | 6420 |
| 36*14*30 | 914.4*355.6*762 | Wo | 9125 | 7905 | 7995 | 6790 |
| 40*12*30 | 1016*304.8*762 | Wo | 10320 | 9005 | 9130 | 7990 |
| 40*14*30 | 1016*355.6*762 | Wo | 12650 | 11350 | 11550 | 10320 |
| 40*16*30 | 1016*406.4*762 | Wo | 14820 | 13200 | 13800 | 12250 |
