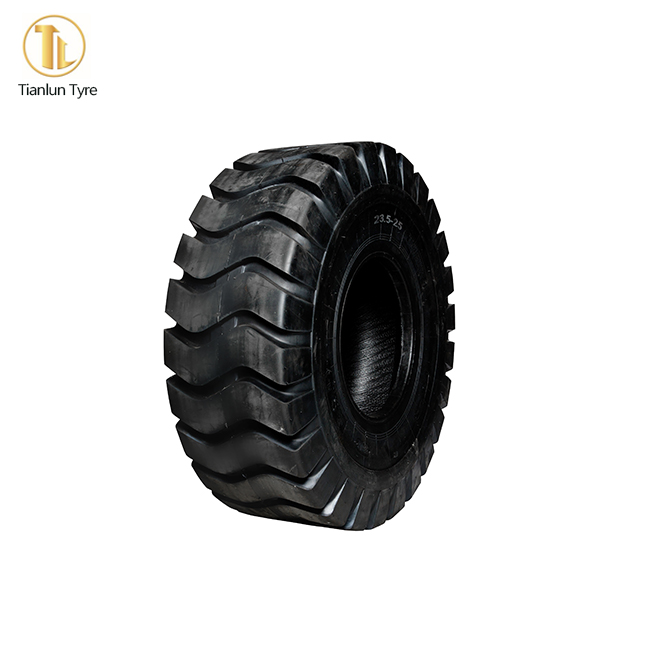

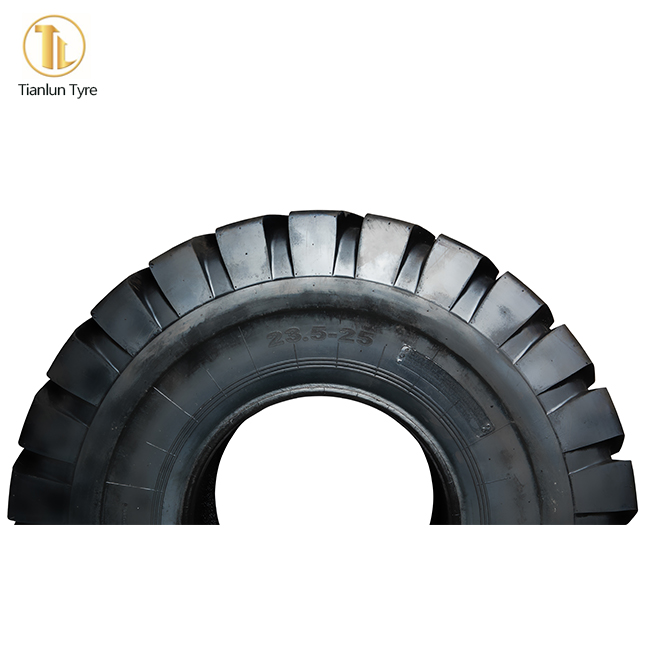

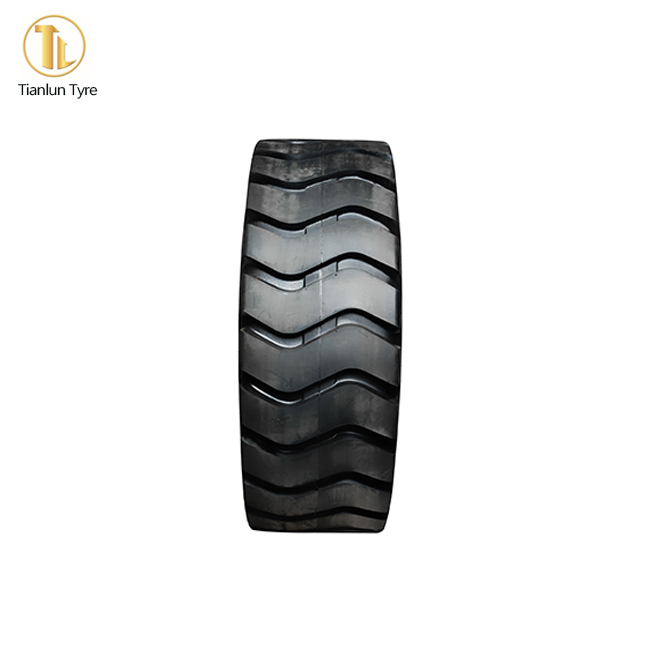

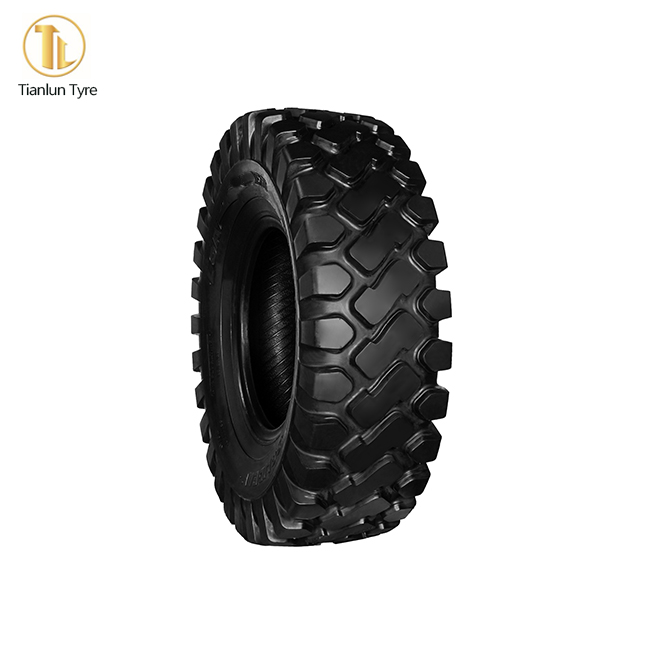

otr-pneumatic-tire
* suitable for Loader , heavy dump truck , scraper

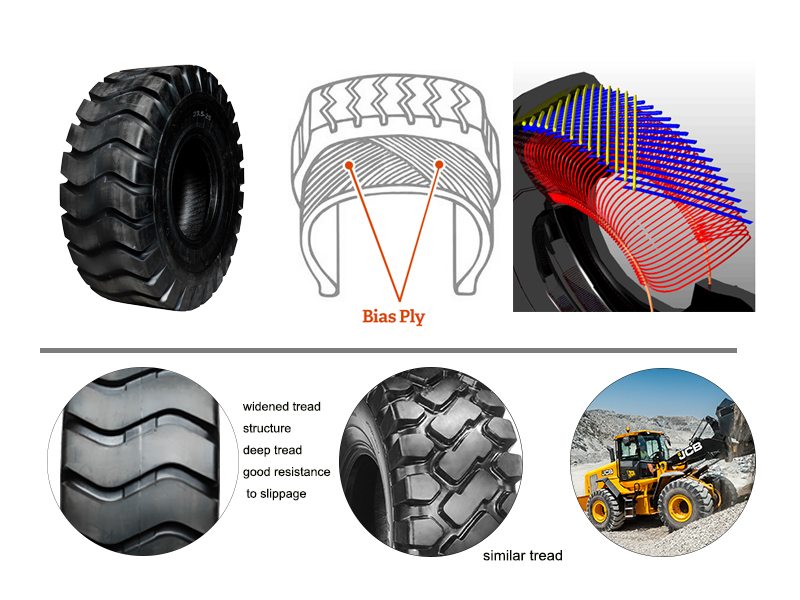

* Wide generality , special tread compounds design
* Powerfull structure design
* Good resistance to slippage
* More suitable for service in constructions , municipal works and dirt rock working conditions
otr-pneumatic-tire
| Size | Pr | Standard Rim (mm) | Tread Depth (mm) | Overall Dia (mm) | Section Width (mm) | Max Loading (kg) |
| 15.5-25 | 12/16 | 12.00/1.3 | 23.5 | 1275 | 395 | 3250 |
| 17.5-25 | 12/16/20 | 14.00/15 | 26 | 1350 | 445 | 5000 |
| 20.5-25 | 16/20 | 17.00/2.0 | 29 | 1490 | 520 | 6000 |
| 23.5-25 | 16/20 | 19.50/2.5 | 30 | 1615 | 595 | 7300 |
| 26.5-25 | 28 | 22.00/3.0 | 35 | 1750 | 675 | 10000 |
| 29.5-25 | 28/32 | 25.00-3.5 | 38 | 1875/1975 | 750 | 11500/12150 |
| 16.00-24 | 20 | 11.25/2.0 | 26 | 1490 | 430 | 6000 |
| 16.00-25 | 32 | 11.25/2.0 | 28.5 | 1493 | 432 | 7300 |
| 13.00-24 | 18 | 10 | 24 | 1301 | 351 | 3875 |
| 13.00-25 | 20 | 10 | 26 | 1300 | 350 | 3875 |
| 14.00-24 | 24 | 10 | 25.5 | 1368 | 375 | 5150 |
| 16/70-16 | 14 | 13 | 25 | 870 | 310 | 2000 |
| 20.5/70-16 | 14 | 13 | 25 | 870 | 340 | 2800 |
| 16/70-20 | 20 | 13 | 25 | 1075 | 410 | 5150 |
| 16/70-24 | 20 | 13 | 25 | 1175 | 410 | 5600 |
| 7.50-16 | 16 | 6.0 | 18 | 761 | 185 | 1180 |
| 8.25-16 | 14 | 6.5 | 18 | 865 | 235 | 2300 |
