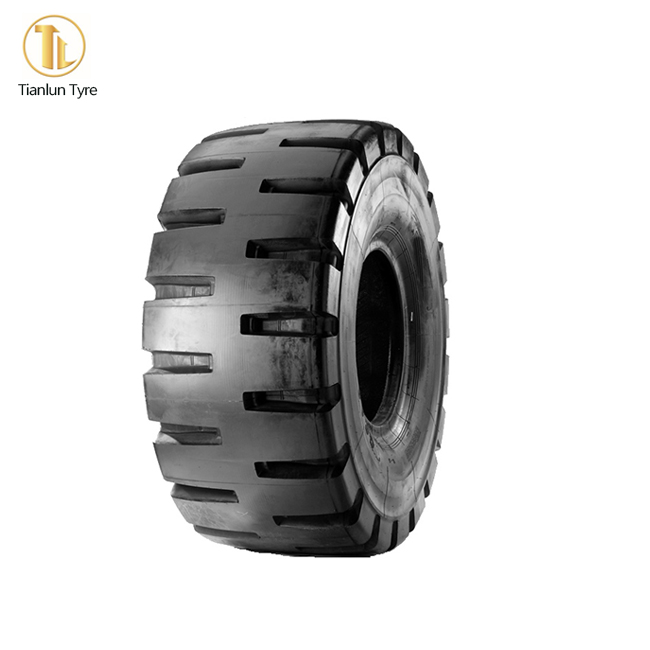

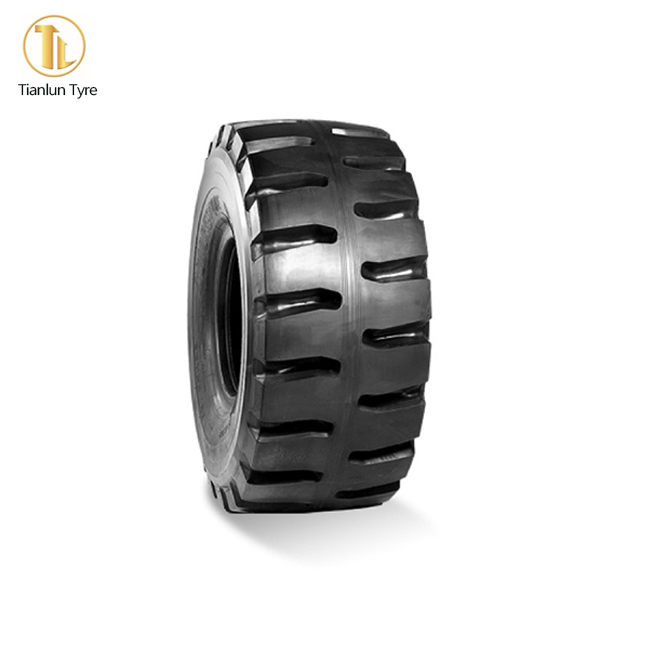

OTR-tire
* Suitable for Scraper .Loader, Earthmover in mins construction
* Wear-resisting
* Good Cutting resistance

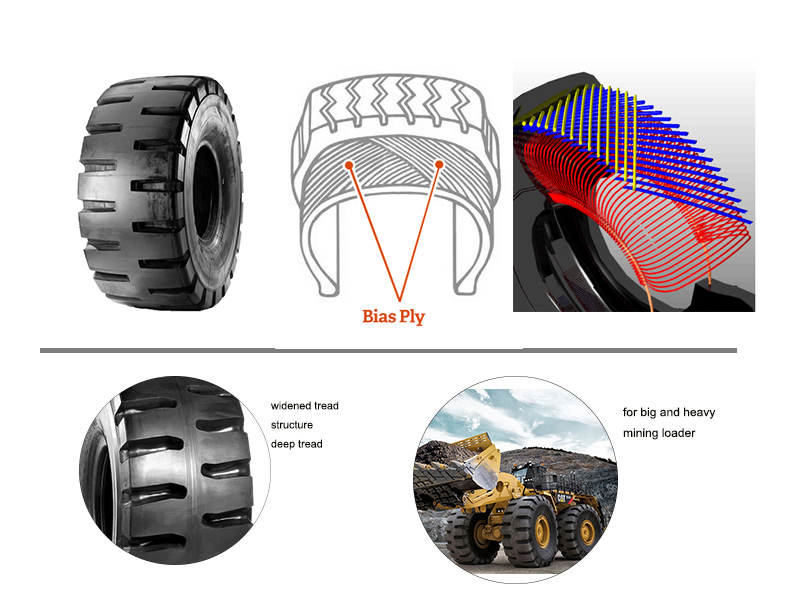

* Wide tread provide a good grounding and traction performance
* Good self-cleaning adn good operability
| Size | Pr | Standard Rim (mm) | Tread Depth (mm) | Overall Dia (mm) | Section Width (mm) | Max Loading (kg) |
| 17.5-25 | 16 | 14.00/1.5 | 63.5 | 1400 | 445 | 7300 |
| 20.5-25 | 20 | 17.00/2.0 | 71.5 | 1550 | 520 | 9500 |
| 23.5-25 | 20 | 19.50/2.5 | 78.5 | 1675 | 595 | 10900 |
| 26.5-25 | 28 | 22.00/3.0 | 87.5 | 1800 | 675 | 15500 |
| 29.5-25 | 28/32 | 25.00/3.5 | 95 | 1920 | 750 | 17500/19500 |
